Electrochemical handheld Nh3 1 Ppm Single Gas Detector

Product Categories
Shenzhen Eyesky&Safewill Technology Co.,Ltd.
Contact Now

Electrochemical handheld Nh3 1 Ppm Single Gas Detector

Brand Name : EYESKY

Model Number : ES30A

Certification : CE,FCC,SIL,ROSH

Place of Origin : CHINA

MOQ : 1 set

Price : 150-500USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 sets per year

Delivery Time : 3-5 work days

Packaging Details : carton packaging

Sensor : Catalytic or electrochemical or infrared

Detection principle : Electrochemical

Warranty : 1 Years

Battery : 3.7v 1300mA rechargeable lithium battery

Contact Now

Item Description
Gas type: NH3 or customized;
Working principle: Catalytic combustion sensor for combustible gas;
Electrochemical sensor for toxic gas and oxygen.
Testing mode: Diffusion sampling.
Display mode: TFT LCD display
Concentration Unit: ppm
Measuring range: NH3:0-100ppm
Resolution: 1ppm
Precision: ≤±3%FS;
Alarm mode: Audible-visual alarm,Vibration alarm,Voice≥75dB@25cm;
Preheat time: ≤90s;
Response time: T90≤30s;
Recovery time: ≤20s;
Explosion proof grade: Ex ib IIB T3;
Protection grade: IP64;
Output signal: Wireless transmission and print function(Optional);
Body material: PC+TPU;
Working temperature: -20℃～+50℃(or customized);
Working humidity: ≤95%RH,(non-condensing);
Charger: USB port;
Working voltage: 3.7V rechargeable lithium battery;
Charging time: ≤6 hours;
Working time: ＞8hours continuously(When normal temperature and no alarm);
Power consumption: <0.7W;
Working pressure: 86～106KPa;
Dimension: 119.6x60x66mm(L*W*H);
Weight: About 182g;
Warranty: 12 months;

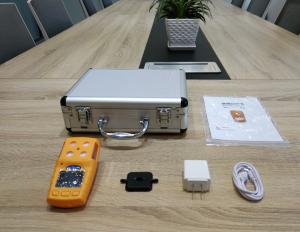

Accessory: Box, instruction, USB charger , data line, calibration cap.


Portable gas detector used to detect the 6 kinds of gases at the same time, high accurate and fast response , it’s easy to operate and with the LED light very convenient to use in the underground ,such as mine, coal mine and tunnel, will send out the alarm signal once the concentration of detect gas is exceed immediately , protect the constructing worker’s health and remind them to leave to the safe place. gas detector applied for many industrial areas , including of the chemical industry, petroleum, gas station, metallurgy, coal mine, agriculture, biology pharmaceuticals, power, lab research and other industry environment
Features of Portable gas detector:
Imported sensor with high performance and fast response
TFT LCD screen display with LED light.
Record the alarm data of 10,000 sets.
Can set high and low alarm value
With the 32bit low power consumption ARM processor and quick response.
Restore factory setting function, avoid the mis-operation.
Three alarm mode: Audible, Visual, Vibration.
Support for 6 sensors detecting
Support the Chinese/English language menu.
The menu interface with words and icon.
LED light function, can provide the light in the dark area or other Emergency time.
LED indicate light, will flash in the dark area.
USB charger port.
Explosion-proof grade of Ex ib IIB T3 Gb；
Protect grade of IP64.
Electrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas DetectorElectrochemical handheld Nh3 1 Ppm Single Gas Detector

Gas type Measuring range
Ex 0~100%LEL
O2 0~25%vol/30%vol
H2S 0~100ppm/1000ppm
H2 0~1000ppm/60000ppm
N2 0~100%vol
NH3 0~100ppm/500ppm
C2H6O 0~100ppm/500ppm
SO2 0~20ppm/2000ppm
Cl2 0~10ppm/20ppm/50ppm/200ppm
HCl 0~50ppm/100ppm
HBr 0~50ppm/100ppm
ClO2 0~50ppm
NO 0~200ppm/500ppm/2000ppm
NO2 0~20ppm/100ppm/500ppm/2000ppm
HCN 0~30ppm/50ppm/100ppm
HF 0~10ppm
CH2O 0~10ppm
THT 0~50mg/m3
Helim 0~1000ppm
Argon 0~100%vol
SiH6 0~50ppm/100ppm
CH6S 0~20ppm
CO2 0~5000ppm/10000ppm
SF6 0~1000ppm
CH6 0~200ppm/10%vol
TVOC 0~20ppm/100ppm/1000ppm
CS2 0~10ppm/50ppm/100ppm
CH3Br 0~20ppm/100ppm/200ppm
CH6 0~10%vol/50%vol/100%vol
